TR50 TM

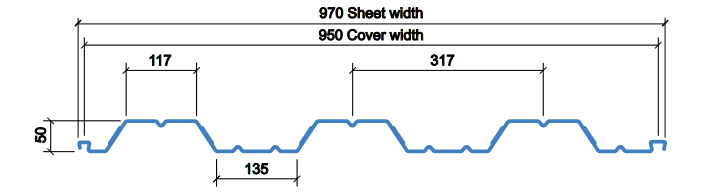

TR50 TM Permanent Shutter

The TR50 profile was introduced in 2018 as a non-composite permanent shuttering deck profile as a low cost solution for a quality product. This profile should only be used as formwork, where the reinforcement within the slab has been designed by the structural engineer, taking no account of the metal decking.


Benefits

  • Un-propped spans up to 3.0m
  • Formwork for non-composite RCC floor and roof slabs
  • Flexible side-lap detail for control of cover width
  • Trough stiffener location designed to optimise stud position and avoid additional on-site checks
  • Optimised cover width for speed of installation
  • 120g/m2 galvanised finish as standard, 275g/m2 , 550g/m2 galvanized finish and colour coat finish also available

Gauges

  • 0.7mm
  • 0.8mm
  • 0.9mm
  • 1.0mm
  • 1.2mm

Steel Grade

  • S250
  • S350
  • S550

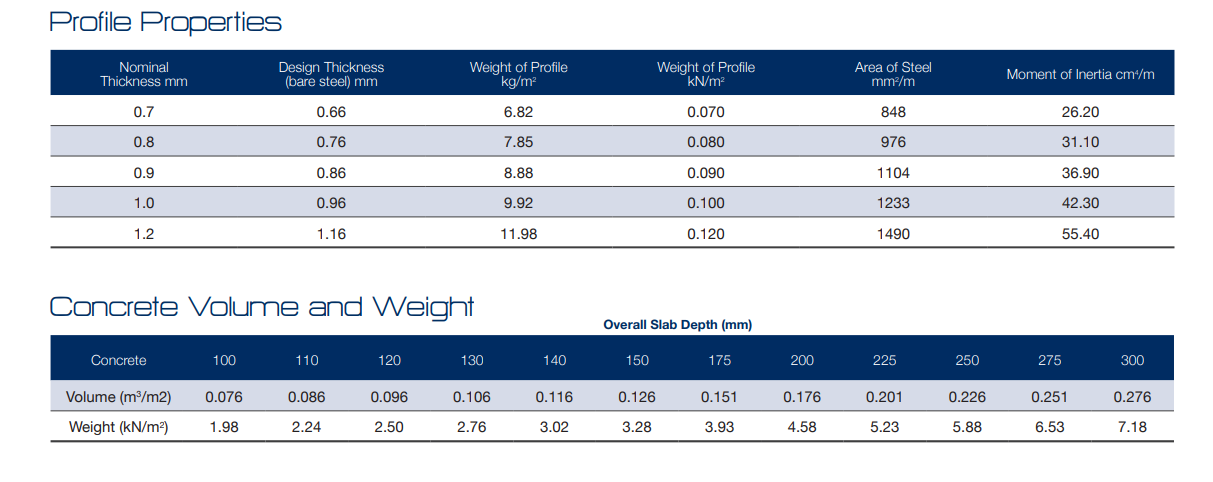

Download - Data Sheet
